PUSAT SERVICE MONITOR LCD / LED - semua merek/merk dan tipe

PALAPA SERVICE CENTER melayani perbaikan Lcd Led Monitor, dengan berbagai merek, tipe dan ukuran ( 9 inch, 10″, 11″, 12″, 14″, 15″, 16″, 17″, 19″, 21″, 24″, 26″, 32″, 40″, .. ).

Merek – merek yang pernah kami tangani selama ini :

ACER, ADVANCE, AOC, BENQ, COMPAQ, DELL, ENVIRO, GTC, HP, IBM, IODATA, INVISION, INCO, KDS, KT, LG, MAG, NICO, PACKARD BELL, PHILIPS, POLYVIEW, PROLINK, RADIUS, RANGER, RASTEROPS, RELION, SAMSUNG, SHARP, SONY, STARLOGIC, VIEWSONIC, ZYREX.

Macam – macam contoh gejala kerusakan yang umum terjadi dan penyebab kerusakan pada monitor LCD:

Kerusakan	Fungsi Bagian dan Kerusakan Umum
POWER SUPPLY	memberikan tegangan Vdc dan arus listrik tertentu yang sangat stabil untuk bagian Inverter dan Mainboard LCD serta Panel LCD.
	Kerusakan pada power supply / adaptor dapat menyebabkan :
		– LCD mati,
		– nyala sebentar lalu mati,
		– lampu nyala tapi tidak tampil gambar,
		– kalau sudah lama (1-2 jam), lalu mati,
		– nyala bagus, kalau dimatikan tidak bisa dihidupkan lagi,
		– tampilan kadang bagus, kadang tidak bagus

MAINBOARD	memproses sinyal input RGB dan Sync H/V, mengolah resolusi dan matriks gambar yang tepat pada panel LCD, mengendalikan lampu backlight dan Inverter.
	Kerusakan pada mainboard dapat dilihat dari gejala seperti, lampu power nyala, tapi .. :
		– tidak ada tampilan gambar,
		– tampilan hanya ada pada resolusi tertentu,
		-ada tampilan, lalu hilang kalau sudah nyala agak lama,
		– ada tampilan ‘No Signal .. ‘ atau ‘Input Resolution is out of range’ dll saat kabel vga tidak dihubungkan,

INVERTER	mendapat suplai daya dari power supply / adaptor, menghasilkan tegangan tinggi pada lampu backlight untuk menerangi LCD.
	Kerusakan pada Inverter dapat menyebabkan :
		– tidak ada tampilan,
		– nyala sebentar lalu mati,
		– ada tampilan, tapi gelap sekali,
		– lampu power kedap-kedip, dan dapat menyebabkan power supply ikut rusak,
		– tampilan kedap-kedip, terang gelap,
	PERHATIAN : Tegangan Inverter sangat tinggi, dapat membahayakan keselamatan jiwa bila tidak ditangani secara profesional atau oleh ahlinya !!!

PANEL LCD	sebagai penampil gambar yang menggunakan teknologi crystal cair (Liquid Crystal) maupun pengembangannya, merupakan bagian part yang paling mahal dari sebuah LCD Monitor.
	Kerusakan pada panel LCD ini, antara lain seperti :
		– dead pixel, ada satu atau beberapa pixel mati maupun nyala terang yang tidak dapat berubah sesuai gambar tampilan layar,
		– tampilan bergaris tidak ada gambar,
		– tampilan bergaris berubah-ubah tempat,
		– tidak ada tampilan
		– terang, tapi tidak ada tampilan

Catatan :

kerusakan lebih mudah ditemukan dan diperbaiki bila LCD/LED yang rusak belum pernah dibongkar.
biaya kerusakan suatu bagian tergantung pada penggantian spare part masing2 LCD/LED, dapat berbeda antar merek, tipe, ukuran, dan walaupun merek jenis dan ukuran sama.

Untuk bantuan service / perbaikan, silakan hubungi PALAPA SERVICE CENTER di :

Mangga Dua Square lt.2 Blok B No.46-47, Jl. Gunung Sahari Raya No.1, Jakarta Utara, Indonesia, No. Telp. 021 62310383, atau aYong 08119307676 untuk konsultasi.

" Apapun merk dan tipe-nya, kerusakan apapun .. kami siap membantu memperbaikinya. "

Hubungi kami segera!

Model No. S231HL
Version S231HL bid
Part number ET.VS1HA.003
Made in China, Oct 2010

Adaptor : 19V 2.1A
Tipe layar : Led LG ??230WF5

Gejala kerusakan : Nyala sebentar lalu mati, tampilan blank.

Kerusakan umum : Mati / tidak hidup / tidak nyala, tidak ada tampilan gambar, lampu power kedap kedip, dead pixel, tampilan bergaris

Model : TFT23W90PS
Made in China, May 2010

Tipe layar : Lcd LG LM230WF2, 4 lamps

Gejala kerusakan : VGA no input signal, tidak ada sinyal input VGA

Kerusakan umum : Mati / tidak hidup / tidak nyala, tidak ada tampilan gambar, lampu power kedap kedip, dead pixel, tampilan bergaris

Tipe lain : 1619SW, A3205, LM7201

Model : 22MP65HA, Made in Indonesia, Okt 2014

Jenis : Monitor LED, menggunakan Adaptor
Tipe Layar Led : LM215WF3

Gejala kerusakan : Tampilan di layar bergaris, gambar blank hitam / putih.

Kerusakan umum : Mati / tidak hidup / tidak nyala, tidak ada tampilan gambar, lampu power kedap kedip, dead pixel, tampilan bergaris

Tipe lain :

D2342P-PN, D2343P-BN, DM2350A-PZ, DM2780A-PZ

E1600S-PN, E1641S-PN, E1642C-BN, E1910S-BN, E1940S-PN, E1940T-BN, E1941S-BN, E1941S-BNX, E1941T-BN, E1942C-BN, E1942S-BN, E1951T-BN, E1960S-PN, E2041S-BN, E2041T-BN, E2042S-BN, E2042TC-BN, E2050T-PN, E2060T-PN, E2241T-BN, E2242T-BN, E2250T-PN, E2250V-PN, E2260V-PN, E2290V-SN, E2340V-PN, E2341V-BN, E2360V-PN, E2711PY-BN

IPS224V-PN, IPS225V-BN, IPS226V-PN, IPS236V-PN, IPS237L-BN

L1510B, L1510M, L1510SF, L1510T, L1511S, L1515S, L1520B, L1530SBNT, L1530SSNT,L1550S-BN, L1552S-BF, L1552S-SF, L1553S-SF, L1710B, L1717S-BN, L1719S-BF, L1553S-BF, L1719S-SF, L1720B, L1730SBFT, L1730SF, L1730SFK, L1740BQ, L1740BQC, L1742SE-PF, L1742T-SF, L1742TE-BF, L1750SQ-BF, L1750SQ-BN, L1750SQ-BN, L1752H-BF, L1752H-SF, L1752S-SF, L1753HR-SF, L1753S-BF, L1753T-BF, L1753T-SF, L1755TQ-PF, L1760SR-BF, L1760TQ-BF, L1770HQ-BF, L1770HR-WF, L177WSB-PF, L1780Q, L1810B, L1900R-BF, L1910S, L1917S-BN, L1930SBFT, L1930SQBFT, L1940BQC, L1942SE-PF, L194WS-SF, L194WT-SF, L1950B-SF, L1950SQ-SN, L1952H-BF, L1952HM-BF, L1952T-BF, L1953H-BF, L1953HR-SF, L1953S-SF, L1953T-BF, L1954SM-BF, L1960TQ-BF, L1960TR-BF, L196WSQ-BF, L196WTB-BF, L196WTQ-BF, L196WTQ-SF, L1970HR-BF, L1970HR-WF, L1982U-BF, L204WT-BF, L222WS-BN, L225WT-BF, L226WA-SN, L226WA-WN, L226WTP-BF, L226WTQ-WF, L3020T, L3200AK, LGE-W2243T-PF, LGE-W2343T-PF

M1717S, M197WA-PT, M197WAP-PT, M208WA-BT, M2241A-PM, M2241A-PT, M2241A-PTN, M2241A-PTP, M227WA-PT, M227WAP-PM, M227WAP-PT, M2341A-PT, M3201C-BN, M3202C-BA, M3702C-BAP, M4200C-BAF, M4201C-BA, M4210D-B21, M4714C-BAP

N1642W-PF, T1710BP-BN

W1642C-PF, W1642S-PF, W1643C-PF, W1643S-PF, W1742S-PF, W1942SE-BF, W1942TE-BF, W1943C-PF, W1943S-PF, W1943SE-PF, W1943SE-PFV, W1943T-PF, W1943TE-PF, W1952TE-PF, W1953S-PF, W1953T-PF, W1953TE-PF, W1954S-PF, W1954SE-PF, W1954TE-PF, W1954TQ-PF, W2043S-PF, W2043T-PF, W2053S-PF, W2053TQ-PF, W2242P-BF, W2243S-PF, W2243T-PF, W2253S-PF, W2253TQ-PF, W2253V-PF, W2254TQ-PF, W2254V-PF, W2261VP-PF, W2343S-PF, W2343T-PF, W2353V-PF, W2363D-PF, W2453V-PF, W2753V-PF

Product Code E1940S-PNV.ATIWAVD
Model No. E1940SV
Indonesia, June 2010

Tipe layar : Led AU Optronics M185XW01
Adaptor 12V 2A

Gejala kerusakan : tidak ada tampilan, gambar gelap, gambar bergaris, tidak nyala, mati

Kerusakan umum : Mati / tidak hidup / tidak nyala, tidak ada tampilan gambar, lampu power kedap kedip, dead pixel, tampilan bergaris

Made in China, Mar 2012 / Dec 2011

Jenis : Monitor LED
Tipe Layar Led : Chi Mei Optoelectronics M185BGE-L10

Gejala kerusakan : Tampilan gelap, gambar blank, layar hitam, tidak nyala, mati, no power.

Kerusakan umum : Mati / tidak hidup / tidak nyala, tidak ada tampilan gambar, lampu power kedap kedip, dead pixel, tampilan bergaris

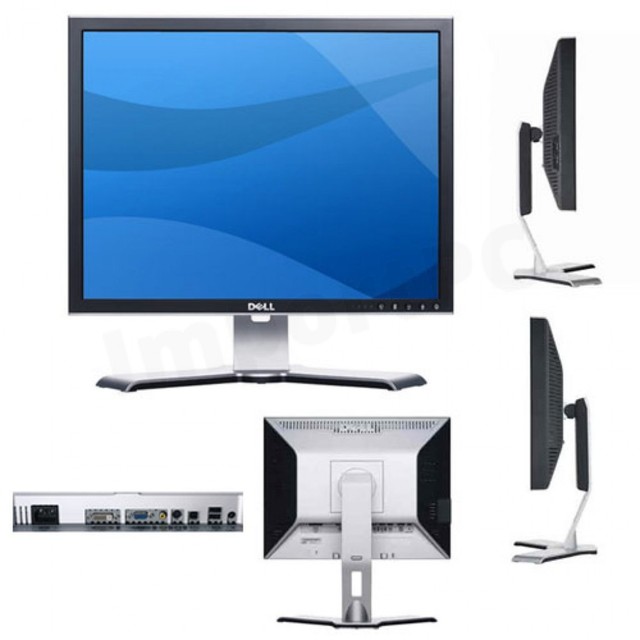

Tipe lain : 1707FP, E2016H, P2217H, SE2716H, 1708FP, E2016HL, P2217Wh, SP2008WFP, 1908FP, E2016HV, P2310H, SP2009WFP, 1909Wb, E2209WFP, P2311H, SP2208WFP, 2007FP, E2210, P2312H, SP2309WFP, 2009WFP, E2210H, P2314H, SR2220L, 2208WFP, E2211H, P2314T, SR2320L, 2209WA, E2213, P2317H, ST2010B, 2407WFP, E2213H, P2317HWh, ST2210B, 2407WFP-HC, E2214H, P2411H, ST2220, 2408WFP, E2214Hv, P2412H, ST2220L, 2707WFP, E2215HV, P2414H, ST2220M, 2709W, E2216H, P2415Q, ST2220T, 3007WFP-HC, E2216HV, P2416D, ST2310, 3008WFP, E228WFP, P2417H, ST2310B, AW2210, E2310HWFP, P2714H, ST2320L, AW2310, E2311H, P2714T Multi Touch Monitor with LED, ST2321L, C7016H, E2313H, P2715Q, ST2410, C7017T, E2314H, P2717H, ST2410B, Crystal Monitor, E2316H, P2815Q, ST2420L, D1901N, E2414H, P4317Q, ST2421L, D2015H, E2416H, S1709WFP, SX2210T, D2015HC, E248WFP, S1909WFP, SX2210WFP, D2201, E2715H, S1909WN, U2211H, D2215H, E5515H, S1909WXWFP, U2212HM, D2215HC, G2210, S199WFP, U2311H, D2216H, G2410, S2009WFP, U2312HM, D3216H, IN1720, S2209WFP, U2410, D3217H, IN1910NWFP, S2216H, U2412M, E157FPT, IN1920, S2216M, U2413, E1609WFP, IN1930, S2230MX, U2414H, E1709WFP, IN1940MW, S2240L, U2415, E170S, IN2010NWFP, S2240M, U2417H, E1713S, IN2020, S2240T 21.5 Multi-Touch Monitor with LED, U2417HA, E1715S, IN2020M, S2309WFP, U2417HJ Wireless Charging Monitor, E178WFP, MR2217, S2316H, U2417HWI, E1909Wb, MR2416, S2316M, U2515H, E1909WDD, P170s, S2317HJ Monitor, U2711, E190S, P190s, S2317HWI Monitor, U2713H, E1910, P1911, S2330MX, U2713HM, E1910H, P1913, S2340L, U2715H, E1911, P1913s, S2340M, U2717D, E1912H, P1914S, S2340T Multi Touch Monitor, U2717DA, E1913, P1917S, S2409WFP, U2913WM, E1913S, P1917SWh Monitor, S2415H, U3011, E1914H, P2010H, S2440L, U3014, E1916H, P2011H, S2715H, U3415W, E1916HL, P2012H, S2716DG, UP2414Q, E1916HV, P2014H, S2740L, UP2516D, E198WFP, P2016, S2817Q, UP2715K, E2009WFP, P2017H Monitor, SE178WFP, UP2716D, E2010H, P2210, SE197FP, UP3017, E2011H, P2210H, SE198WFP, UP3214Q, E2013H, P2211H, SE2216H, UP3216Q, E2014H, P2212H, SE2216HV, UZ2215H, E2014T 19.5 Multi-Touch Monitor with LED, P2213, SE2416H, UZ2315H, E2015Hv, P2214H, SE2416HM, UZ2715H, E2016, P2217, SE2417HG, WR517 Wireless Module, E153FPC, E156FPC, ST2420LB, ST2310F, 2007FP6, 2007FPb, S1709WC, E228WFPC, P190SB, E177FPC, IN1930F, ST2210B, E176FPb, ST2320LF, W185Q P4827A

Model : S19A10N
Model Code LS19A10NS/XD
Type : LS19A10
Made in China, May 2012 / Jan 2012
Colokan power : konektor model 8.
Tipe Lcd : BOE HT185WX1-501 2 lamps, AU Optronics M185XW01 v.8

Gejala kerusakan : Tampilan blank putih, panel LCD rusak

Kerusakan umum : Mati / tidak hidup / tidak nyala, tidak ada tampilan gambar, lampu power kedap kedip, dead pixel, tampilan bergaris

Model: LS19A100NS/XD
Type LS19A100

Made in China, Aug 2011

Adaptor 12/14v 2.14A
Jenis : Monitor LED
Tipe Layar Led : BOE HM185WX1-400

Gejala kerusakan : Tampilan gelap, gambar blank, layar hitam, tidak nyala, mati, no power

Kerusakan umum : Mati / tidak hidup / tidak nyala, tidak ada tampilan gambar, lampu power kedap kedip, dead pixel, tampilan bergaris

Model: S19A300B
Model Code LS19A300BSV/XT
Type No LS19A300

Made in Thailand, Oct 2011

Adaptor 14v 2.14A
Jenis : Monitor LED
Tipe Layar Led : Samsung LTM185AT05

Gejala kerusakan : Tampilan gelap, gambar blank, layar hitam, tidak nyala, mati, no power.

Kerusakan umum : Mati / tidak hidup / tidak nyala, tidak ada tampilan gambar, lampu power kedap kedip, dead pixel, tampilan bergaris

Jenis : Monitor LCD, 17″

Gejala kerusakan : Tampilan gelap, gambar blank, layar hitam, nyala sebentar lalu mati.

Kerusakan umum : Mati / tidak hidup / tidak nyala, tidak ada tampilan gambar, lampu power kedap kedip, dead pixel, tampilan bergaris

Tipe lain :

BL2201, BL2201M, BL2201PE, BL2201PT, BL2201PU, BL2205PT, BL2211M, BL2211TM, BL2400PT, BL2400PU, BL2405HT, BL2410PT, BL2411PT, BL2420PT, BL2420U, BL2420Z, BL2700HC, BL2700HT, BL2710PT, BL2711U, BL3200PT, BL3201PE, BL3201PH, BL3201PT, BL702A, BL902M, BL902TM, BL912, DL2020, DL2215, E2000W, E2200HD, E2200HDA, E2200HDP, E2200W, E2200WA, E2220HD, E2220HDP, E2400HD, E2420HD, E2420HDB, E2420HDP, E700, E700A, E700N, E700T, E900, E900A, E900HD, E900HDA, E900HDP, E900N, E900T, E900W, E900WA, E900WAD, E900WD, E900WN, E902HDP, E910, E910T, EL2200, ER3501, ER3501M, EW2420, EW2430, EW2430V, EW2440L, EW2440Z, EW2440ZC, EW2440ZH, EW2445ZH, EW2730, EW2730V, EW2740L, EW2750ZL, EW2755ZH, EW2775ZH, EZ2450L, FP202W, FP202WA, FP202WV2, FP202WV3, FP2091, FP2092, FP222W, FP222WA, FP222WH, FP231W, FP241VW, FP241W, FP241WZ, FP51G, FP51G+, FP531, FP537S, FP556S, FP567S, FP71E, FP71E+, FP71G, FP71GX, FP71G+, FP71G+U, FP71G+S, FP71V, FP71V+, FP71W, FP72E, FP72ES, FP72G, FP72G+, FP72G+D, FP72G+S, FP72V, FP72V+, FP731, FP731DVI, FP737S, FP737S-D, FP73E, FP73ES, FP73G, FP73GS, FP756MS, FP756S, FP757, FP75G, FP767, FP783, FP783+, FP785, FP785+, FP791, FP91E, FP91G, FP91GX, FP91GP, FP91G+, FP91G+U, FP91R, FP91V, FP91V+, FP92E, FP92ES, FP92G, FP92G+, FP92V, FP92W, FP92WA, FP92W-B, FP931, FP937S, FP93E, FP93ES, FP93G, FP93GP, FP93GS, FP93GX, FP93GW, FP93GWA, FP93GX, FP93GX+, FP93V, FP93V+, FP93VW, FP94G, FP94VW, FP95G, FP991, FP992, G2000W, G2000WA, G2000WAD, G2000WD, G2010W, G2010WA, G2010WP, G2010WP/G2010WAP, G2020HD, G2020HDA, G2025HD, G2025HDA, G2110W, G2110WA, G2200W, G2200WA, G2200WT, G2201W, G2210W, G2210WA, G2220HD, G2220HDA, G2222HD, G2222HDA, G2222HDAL, G2222HDH, G2222HDL, G2225HD, G2225HDA, G2250, G2250HM, G2251M, G2251TM, G2255, G2255A, G2320HD, G2320HDB, G2320HDBL, G2400W, G2400WA, G2400WAD, G2400WD, G2400WT, G2410HD, G2411HD, G2411HDA, G2412HD, G2420HD, G2420HDB, G2420HDBL, G2425HDB, G2450, G2450HM, G2750, G2750HM, G610HDA, G610HDAL, G610HDPL, G615HDPL, G700AD, G700D, G702AD, G702D, G900AD, G900D, G900HD, G900HDA, G900WAD, G900WD, G902HD, G910W, G910WA, G910WAL, G920HD, G920HDA, G920W, G920WA, G920WAL, G920WL, G922HD, G922HDA, G922HDAL, G922HDL, G922HDPL, G925HD, G925HDA, G950A, G950AM, G951A, G955A, GC2870H, GL2023A, GL2030, GL2030A, GL2030AM, GL2030M, GL2040, GL2040A, GL2040AM, GL2040M, GL2055, GL2055A, GL2055M, GL2230, GL2230A, GL2230AM, GL2230M, GL2231, GL2231A, GL2231AM, GL2231M, GL2240, GL2240A, GL2240M, GL2250, GL2250E, GL2250HM, GL2250M, GL2250TM, GL2251M, GL2251TM, GL2265, GL2430, GL2430HM, GL2430M, GL2440, GL2440HM, GL2450, GL2450H, GL2450HM, GL2450HT, GL2450M, GL2460, GL2460HM, GL2750HM, GL2760, GL2760H, GL930, GL930A, GL930AM, GL930M, GL931, GL931A, GL931AM, GL931M, GL940, GL940A, GL940AM, GL940M, GL941M, GL950, GL950A, GL950AM, GL950M, GL951A, GL951AM, GL955A, GW2240M, GW2245, GW2250, GW2250E, GW2250HM, GW2250M, GW2255, GW2255E, GW2255M, GW2260E, GW2260HM, GW2260M, GW2265, GW2265HM, GW2265M, GW2270, GW2270H, GW2320, GW2450, GW2450HM, GW2450M, GW2455H, GW2460, GW2460HM, GW2470H, GW2750, GW2750HM, GW2760, GW2760HM, GW2760HS, GW2765HT, GW2870H, M2200HD, M2400HD, M2700HD, P3200PT, PG2401PT, PV270, PV3200PT, RL2240H, RL2240HE, RL2450H, RL2450HT, RL2455HM, RL2460HT, RL2755HM, SW2401PT, SW2700PT, T201W, T201WA, T2200HD, T2200HDA, T2210HD, T2210HDA, T221W, T221WA, T241W, T241WA, T261W, T420, T505, T51WA, T52WA, T650, T705, T706, T71W, T720, T721, T900HD, T900HDA, T902HD, T903, T904, T905, T906, T91W, T921, TL550, V2200ECO, V2210, V2210ECO, V2210B, V2220, V2220H, V2220HP, V2220P, V2320, V2320H, V2400ECO, V2400W, V2410, V2410ECO, V2410B, V2410T, V2420, V2420H, V2420HP, V2420P, V920, V920P, VL2040A, VL2040AZ, VL2040ZE, VL2245Z, VW2220, VW2220H, VW2230, VW2230H, VW2235, VW2235H, VW2245, VW2245Z, VW2245ZE, VW2420, VW2420H, VW2430, VW2430H, VZ2250, VZ2350, VZ2350HM, VZ2470H, VZ2750, VZ2750C, VZ2770H, X2000W, X2200W, X900, X900W, XL2410T, XL2411T, XL2411Z, XL2411ZE, XL2420G, XL2420T, XL2420TE, XL2420TX, XL2420Z, XL2430T, XL2720T, XL2720Z, XL2730Z, XR3501

Made in China, March 2010

Jenis : Monitor LCD, 18.5″
Tipe Layar Led : BOE HT185WX1-100

Gejala kerusakan : Tampilan tidak ada, layar putih, tidak nyala, mati, no power

Kerusakan umum : Mati / tidak hidup / tidak nyala, tidak ada tampilan gambar, lampu power kedap kedip, dead pixel, tampilan bergaris

Made in China, April 2011

Jenis : Monitor LCD, 18.5″
Tipe Layar : Samsung LTM185AT01

Gejala kerusakan : Tampilan tidak ada, layar putih, tidak nyala, mati, no power

Kerusakan umum : Mati / tidak hidup / tidak nyala, tidak ada tampilan gambar, lampu power kedap kedip, dead pixel, tampilan bergaris

Made in China, Feb 2010

Jenis : Monitor LCD, 15.6″
Tipe Layar : LG LM156WH1

Gejala kerusakan : Tidak nyala, mati, no power, korosi karena kecoa.

Kerusakan umum : Mati / tidak hidup / tidak nyala, tidak ada tampilan gambar, lampu power kedap kedip, dead pixel, tampilan bergaris

Made in China, Jan 2008

Jenis : Monitor LCD, 20.1″
Tipe Layar : LG Philips LM201U05

Gejala kerusakan : Tidak nyala, mati, no power, tidak ada tampilan.

Kerusakan umum : Mati / tidak hidup / tidak nyala, tidak ada tampilan gambar, lampu power kedap kedip, dead pixel, tampilan bergaris

Model HWS8190T

Made in China, Feb 2008 / May 2008

Resolusi Optimal : 1440 x 900

Jenis : Monitor LCD, 19.0″

Gejala kerusakan : Kadang mati, kedap-kedip, nyala sebentar lalu mati, no power, korosi karena kecoa

Kerusakan umum : Mati / tidak hidup / tidak nyala, tidak ada tampilan gambar, lampu power kedap kedip, dead pixel, tampilan bergaris

Tipe : W1953SE-PF
Model : W1953SV
Made in Indonesia, Des 2011

Jenis : Monitor LCD, 18.5″

Tipe Lcd : BOE ht185WX1-100

Gejala kerusakan : Kadang mati, kedap-kedip, nyala sebentar lalu mati, no power, tampilan putih.

Kerusakan umum : Mati / tidak hidup / tidak nyala, tidak ada tampilan gambar, lampu power kedap kedip, dead pixel, tampilan bergaris

Tipe lain :

22LK311, 22LN4000, 32LV3500-G, FLATRON E1642C-BN, FLATRON L1515S, FLATRON L1520B, FLATRON L1550S, FLATRON L1550S-BN, FLATRON L1550S-PF, FLATRON L1717S, FLATRON L1742S, FLATRON L1742SE, FLATRON L1752S, FLATRON L177WSB, FLATRON L19425 PF, FLATRON LX1721, FLATRON W1642C, FLATRON W1642S-PF, FLATRON W1643S, FLATRON W1643S , FLATRON W1643S-PF, FLATRON W1941S, FLATRON W1953S, FLATRON W1953SE, FLATRON W1953S-PF, FLATRON W2252TQ, LED 16EN33, M2241AN

2013.05.19
MTM : 2580-AB1
FRU No 57Y2306

Made in China, Nov 2010

Tipe Lcd : Chi Mei Optoelectronics M185B1-L07, 2 lamps, LG LM185WH1, 2 lamps

Gejala kerusakan : Power saving mode, off, tidak nyala, tidak tampil.

Kerusakan umum : Mati / tidak hidup / tidak nyala, tidak ada tampilan gambar, lampu power kedap kedip, dead pixel, tampilan bergaris

Tipe lain :

D185, D186, L195, L1961, L2060, L2061, L2062, L215, L215p, L222, L2261, L2262, L2361p, L2362p, L2364, L2461x, D1960, L2021, LI1920, LI1921, LI1931e, L1962, LI1963, LI2031, LI2032, LI2041, LI2054A, LI2063, LI2215S, LI2221s, LI2223s, LI2231, LI2241, LI2264d, LI2323s, LI2331, LI2341t, LI2342, LI2364d, LI2721s, LI2821, LS1921, LS1922s, LS1951, LS2013, LS2023, LS2221, LS2223, LS2251, LS2421p, Y27f, Y27g, Y27g RE, LI2321s, LI2361d, LS1922, LS1922s, LS2421p, LT1421, LT2323p

Model No. L177WSBS

Jenis Monitor : LCD, 17.0″

Tipe LCD : HannStar HSD170MGW1, 2 lamps lebar

Made in Indonesia, Maret 2008 / Juni 2008

Gejala kerusakan : Power nyala sebentar lalu mati, tidak tampil, tidak ada gambar.

Kerusakan umum : Mati / tidak hidup / tidak nyala, tidak ada tampilan gambar, lampu power kedap kedip, dead pixel, tampilan bergaris

Tipe lain :

16EN33S-B, 16M35A-B, 16M38A-B, 17MB15T-B, 19EN33S-B, 19EN33V-B, 19M35A-B,19M37A-B, 19M38H-B, 19MB15T-B, 19MB35D-I, 19MN43A-PT, 20EN33S-B, 20EN33SS-B, 20EN33VS-B, 20M35A-B, 20M37A-B, 20M37H-B, 20M38A-B, 20M38H-B, 20MP47A-P, 20MP48A-P, 20MT45A-PT, 20MT47AC-PT, 20MT48AF-PT, 22EA63V-P, 22EN33T-B, 22EN43T-B, 22EN43V-B, 22M35A-B, 22M37A-B, 22M38A-B, 22M45H-B, 22M47VQ-P, 22MA33A-P, 22MA43A-PT, 22MN42A-PM, 22MN42A-PT, 22MP55HQ-P, 22MP57HQ-P, 22MP58VQ-P, 22MP65HQ-P, 22MP67HQ-P, 22MP68VQ-P, 22MT44A-PT, 22MT45A-PT, 22MT47A-PT, 22MT47AC-PT, 22MT48A-PT, 22MT48AF-PT, 23ET63V-W, 23ET83V-W, 23MP65HQ-P, 23MP67HQ-P, 23MP68VQ-P, 23MP75HM-P, 24GM77-B, 24M37H-B, 24MN33A-PT, 24MN42A-PT, 24MP55HQ-P, 24MP57HQ-P, 24MP58VQ-P, 24MP76HM-S, 24MP77HM-P, 24MP88HM-S, 24MT44A-PT, 24MT45A-PT, 24MT47A-PT, 24MT47V-PT, 24MT48A-PT, 24MT48N-PT, 27EA73LM-P, 27MP35HQ-B, 27MP75HM-P, 27MP77HM-P, 27MP77HM-P, 27MU67-B, 27UD68-W, 32MP58HQ-P, 787LE

Model No. X193HQ.D
Version X193HQ.Db
Part No. ET.XX3HA.D03
Made in China, Oct 19, 2009

Gejala kerusakan : Power nyala sebentar lalu mati, tidak tampil, kedap-kedip, tidak ada gambar.

Kerusakan umum : Mati / tidak hidup / tidak nyala, tidak ada tampilan gambar, lampu power kedap kedip, dead pixel, tampilan bergaris

Part no. ET.LBB04.007
China, oct 2007

Gejala kerusakan : Power nyala sebentar lalu mati, tidak tampil, kedap-kedip, tidak ada gambar.

Kerusakan umum : Mati / tidak hidup / tidak nyala, tidak ada tampilan gambar, lampu power kedap kedip, dead pixel, tampilan bergaris

Tipe lain :

AL1515, AL1516W, AL1517A, AL511, H193HQ, P166HQL, S231HL, V193HQV, V203HL, X163W, X193HQ, X193HQV, A181HL, A181HV, A221HQV, A231H, A231HL, AL1511, AL1515, AL1516W, AL1521, AL1702, AL1703, AL1711, AL1712, AL1713, AL1714, AL1715, AL1716, AL1717, AL1721, AL1722, AL1731, AL1732, AL1751, AL1901, AL1911, AL1912, AL1913, AL1913W, AL1914, AL1916, AL1916W, AL1917W, AL1922, AL1923, AL1923W, AL1931, AL1951, AL2002W, AL2016W, AL2032W, AL2051W, AL2202W, AL2216W, AL2416W, AL2423W, AL2623W, AL506, AL511, AL512, AL513, AL532, AL533, AL707, AL708, AL711, AL712, AL715, AL718, AL732, AL801, AL922, B173, B193, B193L, B193W, B193WL, B196L, B196WL, B196L, B196WL, B203H, B203HV, B203W, B206HQL, B206WQL, B233PWL, B223W, B223WL, B226HQL, B226WL, B233HL, B233HU, B235HL, B236HL, B243H, B243HL, B243PHL, B243PWL, B243W, B243WL, B246HL, B 246HQL, B246HYL, B246WL, B273H, B273HL, B273HU, B273PHL, B276HK, B276HL, B276HUL, B286HK, B286HL, B296CL, B326HK, B326HUL, B346C, B346CK, BE240Y, BX320HK, BX340C, BX340CK, CB240HY, CB240HYK, CB241H, CB241HQK, CB241HY, CB241HYK, CB270HU, CB271H, CB271HK, CB280HK, CB281HK, CB290C, CB351C, D240H, D241H, D220HQL, D221HQL, D223HQL, D241HL, D245HQL, DW271HL, DC221HQ, E1900HQ, E2200HQ, E2400HY, EB192Q, EB210HQ, EB222Q, EB240HY, EB320HQ, EB321HQ, EB321HQU, ER320HQ, G185H, G185HV, G193WL, G195W, G195WL, G195WV, G196HQL, G196WL, G205H, G205HL, G205HV, G206HL, G206HQL, G215H, G215HL, G215HV, G223HQL, G226HQL, G227HQL, G233HL, G235H, G235HL, G236HL, G237HL, G24, G245H, G245HQ, G245HQL, G246HL, G246HQL, G247HL, G247HL, G247HYL, G247HYU, G257HL, G257HU, G276HL, G277HL, G277HU, GD235HZ, GN245HQ, GN246HL, GN276HL, GR235H, H193WV, H203H, H213H, H226HQL, H233H, H236HL, H243H, H257HU, H274HL, H276HL, H277H, H277HK, H277HU, H2N274H, HR274H, HS244HQ, P166HQL, P185H, P186H, P186HL, P186HV, P196HQV, P196WV, P199HQL, P199WL, P205H, P206H, P206HL, P209HQL, P215H, P216H, P216HL, P216HV, P221W, P224W, P226HQV, P229HQL, P235H, P236H, P236HL, P237HL, P238HL, P239HL, P241W, P244W, P246HL, P249HL, P249HQL, P278HL, P289HL, V173,V 176L, V183HL, V183HV, V193, V193L, V193W, V193WV, V195HQL, V195WL, V196HQL, V196L, V196WL, V203H, V203HL, V203HQL, V203HV, V203W, V205HL, V206HQL, V206WQL, V213H, V213HL, V213HV, V233PWL, V233W, V233WL, V225HQL, V225WL, V226HQL, V226WL, V233H, V235HL, V236HL, V243H, V243HL, V243HQ, V243HQL, V243PHL, V243PWL, V245HL, V246HL, V246HQL, V246HYL, V246WL, V273H, V273HL, V275HL, V276HL, VA190HQ, VA200HQ, VA220HQ, VA221Q

Model ID ET-0025-B
Type G925HDA
PN 9H.L2WLB.Q8P
Made in China, Mar 2010

Jenis Monitor : LCD, 18.5″

Tipe LCD : AU Optronics M185XW01 v.8

Gejala kerusakan : Tekan on/off tidak nyala, tombol panel keras.

Kerusakan umum : Mati / tidak hidup / tidak nyala, tidak ada tampilan gambar, lampu power kedap kedip, dead pixel, tampilan bergaris

Model Code LS19CMYKFNA/XD
Type CM19WS
Made in Samsung, June 2009

Jenis Monitor : LCD, 18.5″

Tipe LCD : CHI MEI M185B1 -L02

Gejala kerusakan : Nyala lalu backlight / lampu kedap-kedip

Kerusakan umum : Mati / tidak hidup / tidak nyala, tidak ada tampilan gambar, lampu power kedap kedip, dead pixel, tampilan bergaris

Model 733NW
Type No. CM17WS
Model Code LS17CMNSFUXD
Made in Shenzhen, China, Sept, 2009

Jenis Monitor : LCD, 17.0″

Tipe LCD : HannStar HSD170MGW1, 2 lamps

Gejala kerusakan : Ada power, no display, nyala tapi tidak ada tampilan.

Kerusakan umum : Mati / tidak hidup / tidak nyala, tidak ada tampilan gambar, lampu power kedap kedip, dead pixel, tampilan bergaris

Tipe lain : SyncMaster 152x, 172x, SyncMaster 152N, 172N, 192N, 153T, 173T, 174T, 193T, SyncMaster 510M, 710M, 910M, 710V, 910V, SyncMaster 510N, 710N, 910N, 510T, 710T, 910T, 913N, SyncMaster 720B, 721B, 720T, 920T, SyncMaster 510T, 515V*, 512N*, 710T, 711T, 710TM, 712N*, 910T, 912T, 913N, 913T, 910TM, 912N*, 915N*, SyncMaster 510M, 710V, 710M, 73V, 74V, 713V*, 715V*,910V, 910M, 913V, 93V, 94V, 915V*, SyncMaster 730B, 930B, SyncMaster 173P

P/N NM972A
Regulatory Model No. HSTND-2511-T
Made in China, July 2010

Jenis Monitor : LCD, 18.5″

Tipe LCD : LG LM185WH1, 2lamps

Gejala kerusakan : Tampilan layar bagian atas agak gelap / redup.

Kerusakan umum : Mati / tidak hidup / tidak nyala, tidak ada tampilan gambar, lampu power kedap kedip, dead pixel, tampilan bergaris

Model 743nx
Type No. MY17LS

Jenis Monitor : LCD, 17.0″

Tipe LCD : Chunghwa CLAA170EA, 4 lamps

Gejala kerusakan : Tidak nyala, tidak ada tampilan.

Kerusakan umum : Mati / tidak hidup / tidak nyala, tidak ada tampilan gambar, lampu power kedap kedip, dead pixel, tampilan bergaris

Tipe lain :

LA22A450, LA32R81B, LS19A100, SYNCMASTER 633NW, SYNCMASTER 933, SYNCMASTER 171S, SYNCMASTER 173V, SYNCMASTER 510N, SYNCMASTER 540N, SYNCMASTER 713N, SYNCMASTER 720N, SYNCMASTER 732N, SYNCMASTER 732N+, SYNCMASTER 732NW, SYNCMASTER 733N, SYNCMASTER 733NW, SYNCMASTER 740N, SYNCMASTER 740NX, SYNCMASTER 743NX, SYNCMASTER 931BW, SYNCMASTER 932B, SYNCMASTER 932B PLUS, SYNCMASTER 932GW, SYNCMASTER 933, SYNCMASTER 933N PLUS, SYNCMASTER 943, SYNCMASTER 943BWX, SYNCMASTER 953BW, SYNCMASTER B1630, SYNCMASTER B1930, SYNCMASTER B1930N, SYNCMASTER E1920, SYNCMASTER E1920 NX, SYNCMASTER S16A100N, SYNCMASTER S19B310, SYNCMASTER SA10, SYNCMASTER SA300, SYNCMASTER SA350, SYNCMASTER SA550, SYNCMASTER T220, UA22ES5000

Product No P9617D
Spare no 333354-001
Model name : L1502

Main in China, December 2004

Jenis Monitor : LCD, 15.0″

Gejala kerusakan : Tidak nyala, tidak ada tampilan, mati.

Kerusakan umum : Mati / tidak hidup / tidak nyala, tidak ada tampilan gambar, lampu power kedap kedip, dead pixel, tampilan bergaris

Product Number GL831A
Regulatory Model No HSTND-2A06
Made in China, Dec 2007

Tipe LCD : LG Philips LM150X08, 15.0″

Gejala kerusakan : Kedip-kedip, tidak nyala, tidak ada tampilan, mati.

Kerusakan umum : Mati / tidak hidup / tidak nyala, tidak ada tampilan gambar, lampu power kedap kedip, dead pixel, tampilan bergaris

Tipe lain :

HP L1750, L1950/L1950g, L1710, L1910, L1908w, L1908wm, L1945w, L1945wv, L2208w, L2245w/L2245wg, L2445w, LE1711, VP15s, VS17e, W1907, L1906, VS19e, ProDisplay P17A, P221, EliteDisplay E190i, E201, E221c, E231, E241i, E271i, Z Dsiplay Z22i, Z24i, Z27i, Z27x, Z30i, DreamColor Z24x, V201a, W2072a, ProDisplay P201

menggunakan adaptor 12V 3.5A, bisa dipasang Touch Screen
Made in China

Tipe LCD : 17″ kotak

Gejala kerusakan : Tidak nyala, tidak ada tampilan, mati, adaptor rusak.

Kerusakan umum : Mati / tidak hidup / tidak nyala, tidak ada tampilan gambar, lampu power kedap kedip, dead pixel, tampilan bergaris

Kerusakan umum : Mati / tidak hidup / tidak nyala, tidak ada tampilan gambar, lampu power kedap kedip, dead pixel, tampilan bergaris

Tipe lain :

VG2230WM, VP171B, VX2000, VE710B, VA703M, VS12440, VA1928WM, VX1940W, VA22226W, VP1716, VP171B, VG2021M, VA1912WB, VA702B, VA703M-3, WA19W

VE700, VE710B, VA1928wm, VA1912wb, VA1930wm, VA703M, VA712, VA912B, VA702B, VA2026w, VA1938wa, VA926wa, VA2212m, VA1912m, VA1912a, VA2248m, VA 2448m, VA2047m

VG730m, VG2021m, VG2230wm, VG2232wm, VG1932wm, VG732m, VG2239m, VG2228wm

VP930b, VP2365, VP2765, VP2770, VP2772

VX724, VX922, VX924, VX1912wb, VX1935wm, VX1940w, VX2235wm, VX2240w, VX2245wm, VX2250wm, VX2252mh, VX2270mh

VA1903a, VA2055Sm, VA1603a, VA1620a-LED, VA1917a, VA1921a, VA951S, VA2046a-LED, VA2249S, VA2265S, VA2265Sh, VA2265Smh, VA2349S, VA2465S, VA2465S-2, VA2465Sh, VA2465Smh, VG932m, VG2228wm, VG2233Smh, VG2239m, VG2437mc, VG2439m, VG2401mh, VG2401mh-2, VG2732m, VP2780-4K, VX2252mh, VX2257-mhd, VX2260S, VX2263S, VX2263Smhl, VX2263Smhl-W, VX2270S, VX2363Smhl, VX2370S, VX2370Smh, VX2452mh, VX2457-mhd, VX2475Smhl-4K, VX2573-sg, VX2573-shw, VX2757-mhd, VX2771-smhg, VX2771-smhv-2, VX2858Sml, VX2880ml

Spesifikasi :

Panel size Wide Screen 15.6"(39.6cm) 16:9
D-SUB
Signal frequency 30~85 KHz(H)/ 55~63 Hz(V)
Power Consumption : Power ON : < 12.8W* , Power Saving Mode : < 0.5W , Power Off Mode : < 0.5W

Kerusakan / keluhan : Nyala sebentar lalu mati

Kerusakan umum : Mati / tidak hidup / tidak nyala, tidak ada tampilan gambar, lampu power kedap kedip, dead pixel, tampilan bergaris

Spesifikasi :

IPS LCD
W-LED System
Ratio 16:9 Widescreen
Aerial input 75 Ohm
D-SUB
HDMI
Headphone
USB
Power ON Mode (40W), Off Mode (0.5W), Standby Mode (0.5W)
Mains Power 120-240V, 50-60Hz

Kerusakan / keluhan : Tidak ada tampilan

Kerusakan umum : Mati / tidak hidup / tidak nyala, tidak ada tampilan gambar, lampu power kedap kedip, dead pixel, tampilan bergaris

Kerusakan / keluhan : Mati total

Kerusakan umum : Mati / tidak hidup / tidak nyala, tidak ada tampilan gambar, lampu power kedap kedip, dead pixel, tampilan bergaris

Kerusakan / keluhan : Nyala sebentar lalu mati (motherboard / power supply rusak)

Kerusakan umum : Mati / tidak hidup / tidak nyala, tidak ada tampilan gambar, lampu power kedap kedip, dead pixel, tampilan bergaris

Tipe lain : asus ve247h, asus ve248h, asus ve278h, asus ve278q, asus ve278q, asus ve247, asus ve228h, asus ve278, asus ve248q

HP Omni 220 PC

Keluhan : Mati

Spesifikasi :

Tipe dekstop All in one
Kecepatan prosesor 3.3GHz
Model GPU : HD Graphics
RAM : 2GB
Kecepatan memori : 1333MHz
Tipe memori : DDR3
Wifi, USB

Tipe lain : Omni 220-1010D, Omni 220-1110D, Omni 220-1127L

Keluhan : Ganti memori jadi 4GB

Spesifikasi :

Tipe dekstop All in one
Kecepatan prosesor : 1.6 GHz
Model prosesor : N3050
Slot memory : 1
HDD 500GB
Wifi, ethernet, USB, HDMI, CardReader
Power supply : 45 W AC power adapter
ENERGY STAR certified

Keluhan : Mati setiap 5 detik

Spesifikasi :

Brand : Dell
Model : E176FPb
Voltage : AC 120/230 V
Frequency required : 50/60 Hz

Model lain yang sedang beredar di pasaran Jakarta & sekitarnya :

Acer 15.6 Inch P166HQL LED

Acer 18.5 Inch V195HQV

Acer 20 Inch P206HL LED

Acer 20 Inch V203HL LED

Acer 23 Inch V233HL LED

Acer 24 Inch GN245HQ + Kacamata 3D NVIDIA

Acer 24 Inch S243HL LED

Advance 14 Inch LT1470 LED+TV+Speaker

Advance 15.6 Inch LM 1670 Lumine LED+Speaker

Advance 22 Inch V2220 LCD+TV+Speaker HDMI

AOC 15.6 Inch 1619SW

AOC 15.6 Inch E1620SWB

AOC 18.5 Inch E943FW LED

AOC 18.5 Inch N950SW

AOC 19.5 Inch E2043FK LED

AOC 23 Inch 2434PW

AOC 23 Inch I2340V

AOC 24 Inch V24T

Asus 15.6 Inch VH162D

Asus 18.5 Inch VH192D

Asus 18.5 Inch VH197T LED + Speaker

Asus 20 Inch MS202N

Asus 21.5 Inch VH222H

Asus 23 Inch VG236HE

Asus 24.1 Inch PA246Q

Asus 27 Inch VE278Q

BenQ 15.6 Inch G610HDAL LED

BenQ 17 Inch Square G702AD

BenQ 18.5 Inch G925HDA

BenQ 18.5 Inch GL930A LED

BenQ 18.5 Inch V920P LED

BenQ 21.5 Inch GL2230

BenQ 21.5 Inch T2210HD

BenQ 21.5 Inch V2220HP LED Slim (Glare Panel,Backlight Technology)

BenQ 23.6 Inch XL2410T (For Professional Gamers)

BenQ 24 Inch G2420HD

BenQ 24 Inch V2420H LED (Backlight Technology)

BenQ 27 Inch M2700HD

Chimei 15.6 Inch CMV655A

Chimei 18.5 Inch CMV-95ND

Chimei 21.5 Inch 22VD LED

Chimei 21.6 Inch 22QD

Chimei 23 Inch CMV23-LH LED

Chimei 24 Inch CMV24-LH

DELL 17 Inch IN1720

DELL 17 Inch S1709W

DELL 18.5 Inch IN1920

DELL 20 Inch IN2020M LED HD

DELL 20 Inch S2009W

DELL 21.5 Inch P2211H LED

DELL 21.5 Inch P2220T Touch Screen

DELL 23 Inch Alienware AW2310

DELL 23 Inch ST2320L LED Full HD

DELL 24 Inch ST2420L LED Full HD+HDMI

Envision 18.5 Inch H819

Envision 21.5 Inch G2261W (Bonus UFD 4Gb)

Evio 15 Inch Square

Evio 15 Inch Wide Screen

Forsa 15.6 Inch Touch Screen LED

Forsa 15.6 LED

Fujitsu 18.5 Inch 905G DVI

Fujitsu 22 Inch 2205G DVI

GTC 15.4 Inch LD 500WNK Wall Mounting

GTC 15.6 Inch LD160W

GTC 15.6 Inch LD600WNT Wall Mounting

GTC 17 Inch LD170W LED

GTC 18.5 Inch LD800W LED

GTC 18.5 Inch LT185W LED (Monitor TV)

GTC 19 Inch LD901W

GTC 20.5 Inch LD210W LED

HP 23 Inch X2301 DVI+HDMI+Full HD LED

Lenovo 20 Inch L2060

LG 15.6 Inch 1643S

LG 16 Inch E1600S-PN LED

LG 16 Inch N16421W

LG 17 Inch L1742S-PF

LG 17 Inch L177WSB-PF

LG 18.5 Inch 1960S

LG 18.5 Inch E1941S LED

LG 18.5 Inch W1953S-PF

LG 19 Inch L1942S (Square)

LG 20 Inch E2050T / E2060T

LG 21.5 Inch E2241T LED

LG 21.5 Inch E2290V

LG 21.5 Inch M2241A

LG 22 Inch 227WAP

LG 22 Inch E2250V

LG 22.5 Inch M2341A

LG 22.5 Inch W2360V

LG 22.5 Inch W2363D

LG 23 Inch W236D

LG D2342P (3D LED) + Glasses

NS 15 Inch LED

Phillips 15.6 Inch 160EL1SB

Phillips 17 Inch 17S1SB

Phillips 18.5 Inch 191EL2SB LED

Phillips 18.5 Inch 192E2SB

Phillips 21.5 Inch 222EL2SB

Phillips 21.6 Inch 221E1HSB 1920×1080,Wide,Black,HDMI

Phillips 22 Inch 220CW9FB

Phillips 22 Inch 220X1SW

Phillips 24 Inch 240B1CB

Power Max 16 Inch LED

Power Max 17 Inch LED

Samsung 15.6 Inch B1630

Samsung 18 Inch S19A300N LED

Samsung 18.5 Inch B1930

Samsung 18.5 Inch E1920N

Samsung 19 Inch S19A350N

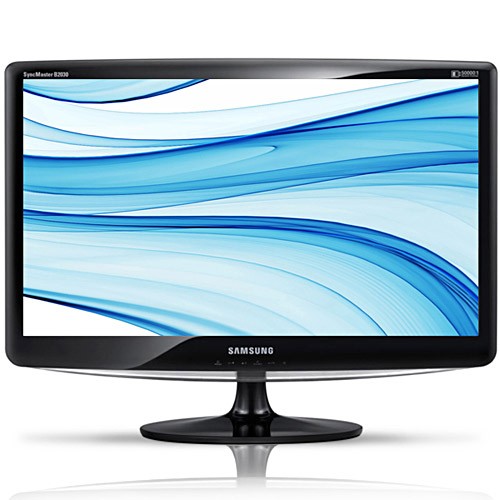

Samsung 20 Inch B2030 / E2020

Samsung 22 Inch B2230HN HDMI+Full HD+TV Tuner

Samsung 22 Inch BX2231

Samsung 22 Inch S22A350

Samsung 23 Inch PX2370 HDMI

Samsung 23 Inch S23A550

Sky View 17.3 Inch LED

Sky View 20 Inch LED

Viewsonic 15.6 Inch VA-1601-LED 1366×768,20001:1.8ms,Wall Mounting,Black

Viewsonic 18.5 Inch VA-1931WM LED

Viewsonic 18.5 Inch VA-1931WMA

Viewsonic 19 Inch VX-1937WM+DVI

Viewsonic 21.5 Inch VA-2223WM

Viewsonic 22 Inch VX2237WM

Viewsonic 22 Inch VX2250WM LED

Viewsonic 28 Inch VX-2835WM HDMI
